ฟุตวาล์วเหล็กหล่อ
Cast Iron Foot Valve |
 |
DESIGN SPECIFICSTIONS
1. Casing : Cast Iron GG25
2. Ring : Bronze G-CuZn12
3. Guide : Cast Iron GG25
4. Spring : Stainless Steel ANSI 302
5. Seal : NBR
6. Head Valve : Cast Iron GG25
7. Stem Valve : Stainless Steel
8. Screw : Stainless Steel
9. Strainer : Ni. Coated Steel
TECHNICAL CHARACTERISTIC
- Minimum head-loss
- Silent, reliable sealine, compact
- Exception robustness
- Do not generate hammering |
MATERIALS OPTIONS
Strainer : Steel, SS316, Polymer
Disc : Bronze ; SS304 ; SS316
Seal : EPDM ; PTFE ; Viton ; etc.
PRESSURE AND TEMPERATURE
- Working Temperature
-10๐C to +130๐C
- Working Pressure : 10 bar
- Test Pressure : 16 bar
DESCRIPTION
- Closing system : Long back axial guiding
for reduced displacement
- Sealing guaranteed by a flat seal
- Return spring |
| ขนาด (Size) |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
14" |
16" |
| ราคา (Price) |
4,400 |
5,400 |
6,400 |
8,600 |
12,500 |
14,500 |
26,000 |
42,000 |
58,000 |
105,000 |
135,000 |
GRE
Foot Valve
 |
| ขนาด (Nominal Size) |
A |
B |
C |
น้ำหนัก (Weight) Kg. |
ราคา (Price) |
| inch |
mm. |
mm. |
| 2-1/2" |
65 |
178 |
187 |
108 |
1.7 |
9,500 |
| 3" |
80 |
191 |
245 |
124 |
2.2 |
10,400 |
| 4" |
100 |
229 |
295 |
158 |
3.5 |
13,600 |
| 5" |
125 |
254 |
342 |
188 |
5.4 |
18,000 |
| 6" |
150 |
279 |
413 |
211 |
7.5 |
23,800 |
| 8" |
200 |
343 |
459 |
346 |
15.0 |
34,800 |
| 10" |
250 |
406 |
664 |
346 |
24.5 |
64,250 |
| 12" |
300 |
482 |
695 |
485 |
35.0 |
83,000 |
| 14" |
350 |
533 |
946 |
485 |
45.0 |
139,000 |
| 16" |
400 |
597 |
1064 |
485 |
65.0 |
183,000 |
*The figures are given for information and can be modifled due to product development without prior notice
| MATERIALS OF COMPONENTS |
|
| PART |
DESCRIPTION |
MATERIALS |
| NO. |
| 1 |
BODY |
COMPOSITES |
| 2 |
INTEGRAL DISC & STEM |
COMPOSITES |
| 3 |
GUIDE |
COMPOSITES |
| 4 |
SEAL RING |
NBR/EPDM |
| 5 |
SPRING |
SUS304 |
| 6 |
SCREEN |
COMPOSITES/SUS 304 |
| 7 |
BOLTING |
SUS 304 |

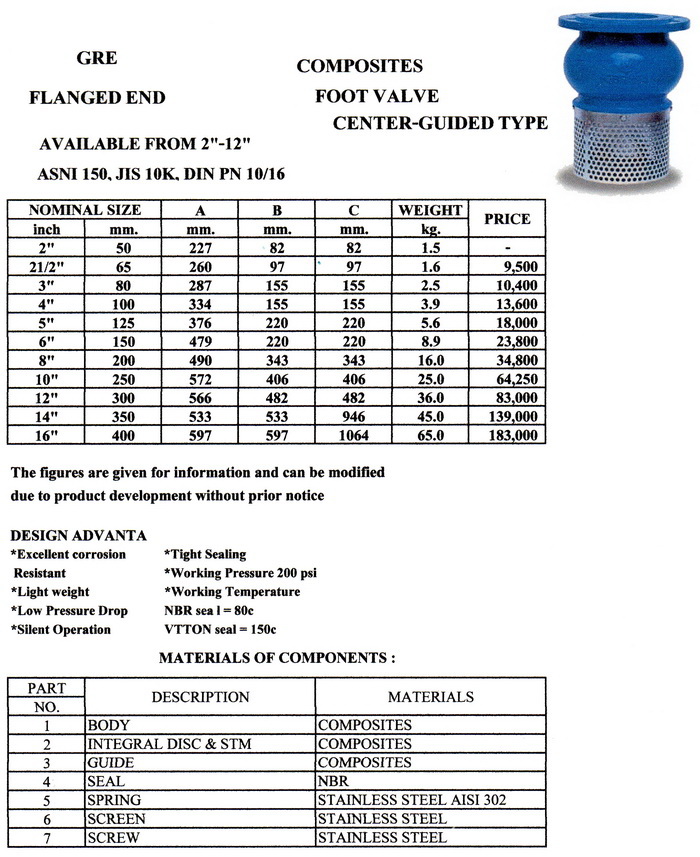

Design Specifications
- Flange with raised face, drilled according to ANSI 150, DIN PN10 or JIS 10K flanges
- Maximum working pressure: 10 Bar
- Maximum working temperature 80°C
- Maximum intermittent temperature: 90°C
- Inspection and testing per GRE standard :-
- 100% sealing tested with water at full body water column (5 psi) |
|

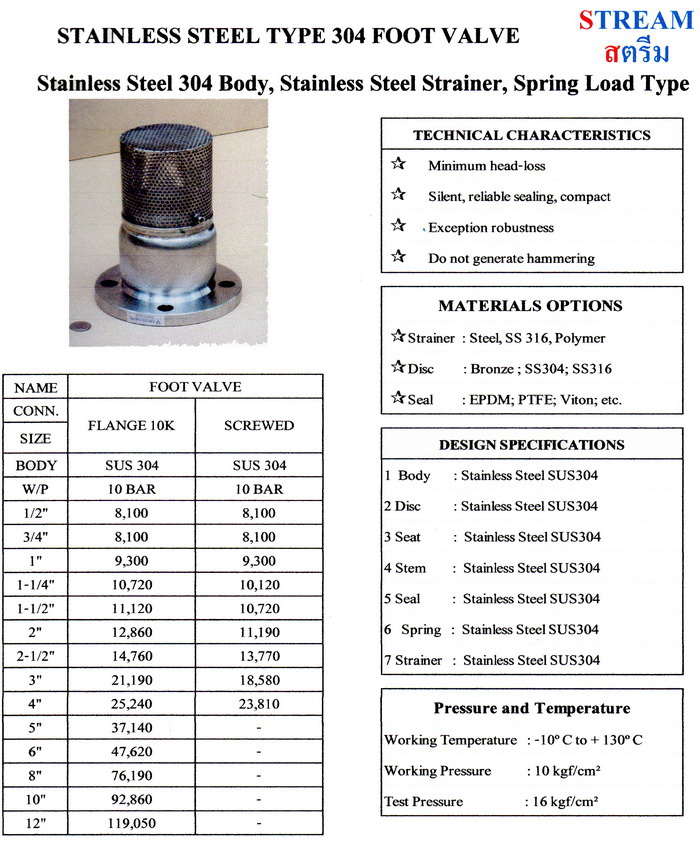

ฟุตวาล์วสแตนเลส
STAINLESS STEEL TYPE 304 FOOT VALVE
Stainless Steel 304 Body, Stainless Steel Strainer, Spring Load Type
|
|
| NAME |
FOOT VALVE |
| CONN. |
FLANGE 10 K |
SCREWED |
| SIZE |
| BODY |
SUS 304 |
SUS 304 |
| W/P |
10 BAR |
10 BAR |
| 1/2" |
8,100 |
8,100 |
| 3/4" |
8,100 |
8,100 |
| 1" |
9,300 |
9,300 |
| 1-1/4" |
10,720 |
10,120 |
| 1-1/2" |
11,120 |
10,720 |
| 2" |
12,860 |
11,190 |
| 2-1/2" |
14,760 |
13,770 |
| 3" |
21,190 |
18,580 |
| 4" |
25,240 |
23,810 |
| 5" |
37,140 |
- |
| 6" |
47,620 |
- |
| 8" |
76,190 |
- |
| 10" |
92,680 |
- |
| 12" |
119,050 |
- |
|
|
|
|
|
|
|
